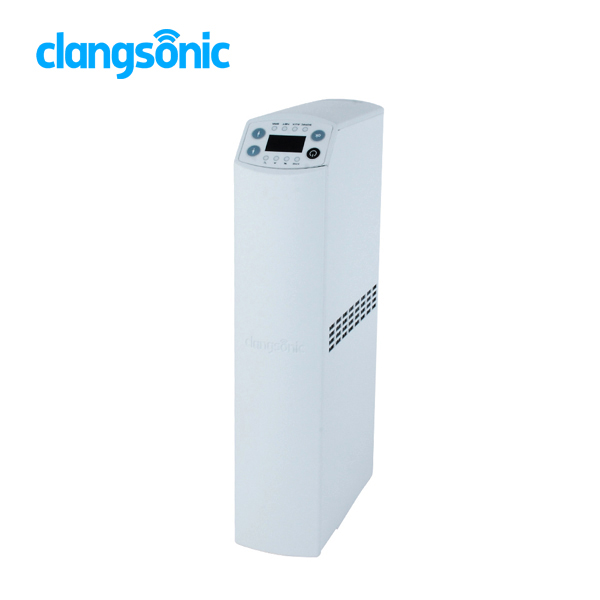

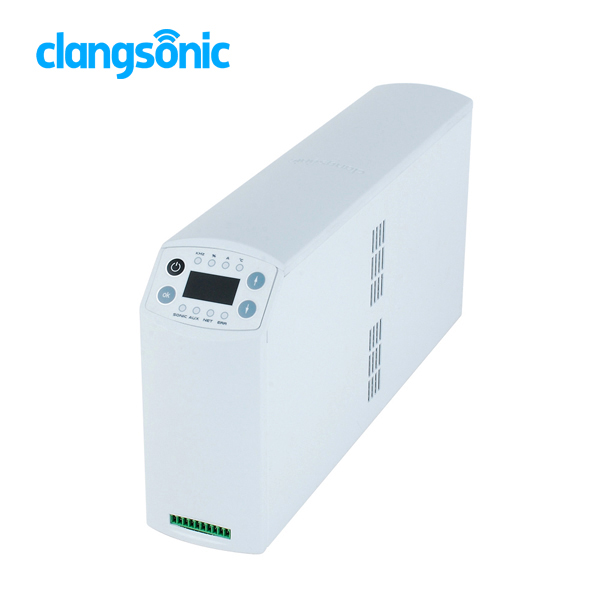

Digital Ultrasonic Generator

SU digital ultrasonic generator was developed for Complex industrial cleaning applications. It adopted the core modular of ultrasonic self-adaptation function which would improve the stability and compatibility to different working conditions. Adopt partition type, single cavity air duct structure design, it has good adaptability to the harsh environment. SU digital ultrasonic generator is suitable for cleaning electroplating bath, circuit board, 3C accessories and other industries.

Product Description

China Customized Digital Ultrasonic Generator Suppliers

SU digital ultrasonic generator was developed for Complex industrial cleaning applications. It adopted the core modular of ultrasonic self-adaptation function which would improve the stability and compatibility to different working conditions. Adopt partition type, single cavity air duct structure design, it has good adaptability to the harsh environment. SU digital ultrasonic generator is suitable for cleaning electroplating bath, circuit board, 3C accessories and other industries.

Digital Ultrasonic Generator Parameter（Specification）

Description	Parameters
Ultrasonic Frequency	28kHz
Ultrasonic Power	1000Watts
Peak Power	2000Watts
Power Adjustable	10-100%
Remote Control	Level: 24VDC ± 10% Current: 20mA
Communication Interface	RS485 MODBUS RTU
Power Supply	220V±10%, 50/60Hz
Working Temperature	0-40°C/0-90%RH
Protection Class	IP21
Full Bridge Phase Shift	√
Constant Power Output	√
Size	346x85x58mm (L x W x H)

Digital Ultrasonic Generator Features and Application

1. IGBT full bridge phase shit technology
2. 10-100% power adjustable linearly
3. Constant power output for different working conditions
4. Auto Frequency Tracking
5. 2 times peak power technology which has better cleaning effect to stubborn stains
6. Frequency sweep function which can effectively eliminate stand wave and improve ultrasonic performance
7. Conversion efficiency up to 95%
8. Industrial level LCD display supporting parameters setting and status monitoring
9. Internal protection for over current, over voltage and short circuit
10. Remote control, connectable to PLC and HMI etc
11. Support RS485 MODBUS RTU communication

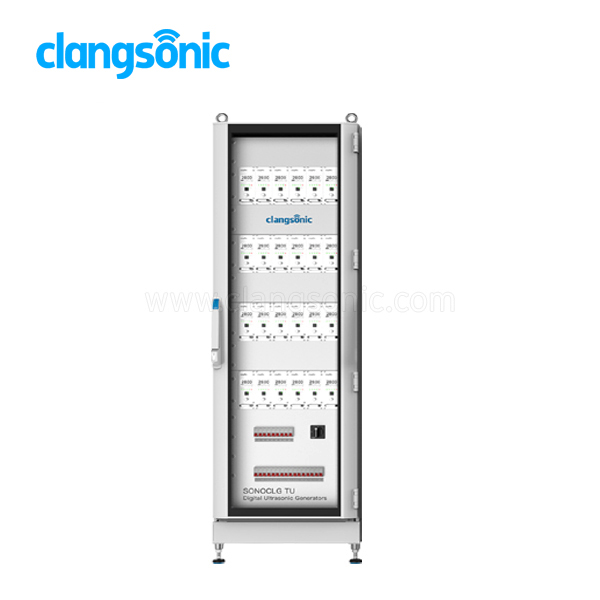

12. Can be integrated into 19'' standard cabinet

Digital Ultrasonic Generator Application
