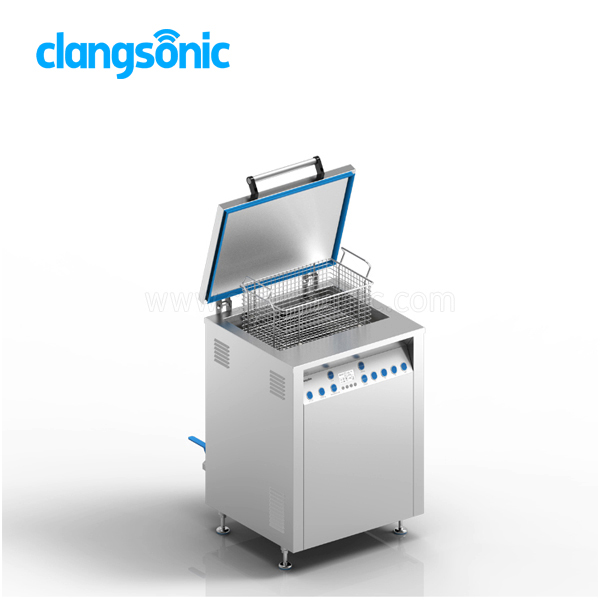

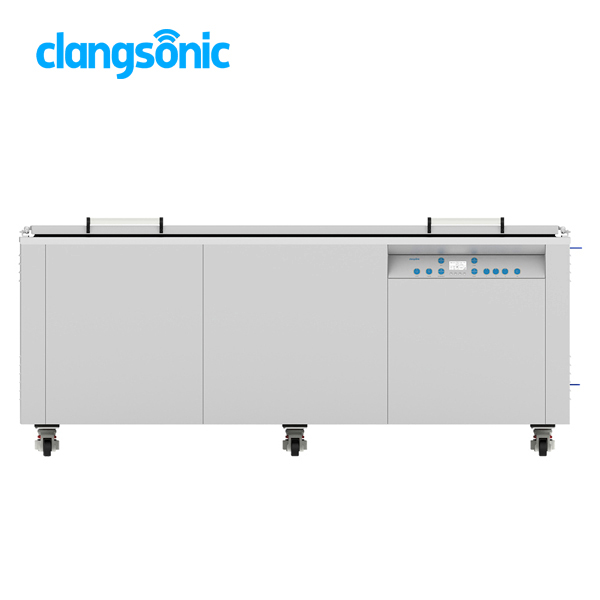

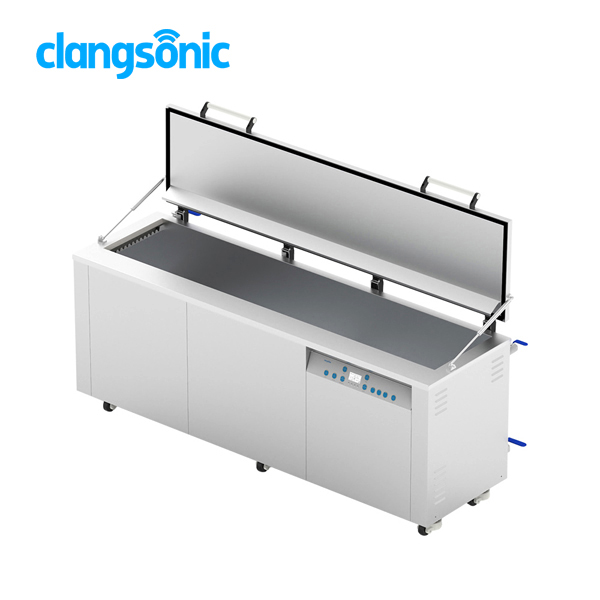

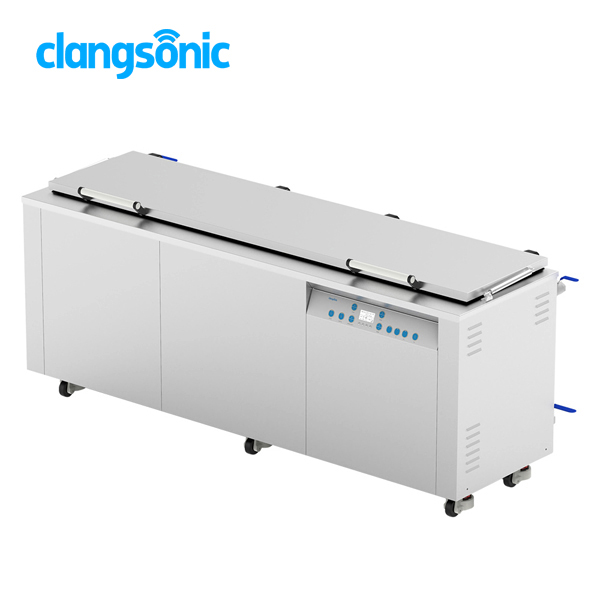

RM series is dual-frequency ultrasonic cleaning machine suitable for industrial applications. The core component ultrasonic generator adopts the most advanced T technology platform which has high cleaning efficiency, simple operations and no need of debugging on site. It can be widely used in metal products, auto parts, electronics cleaning, medical instruments, optical glass cleaning etc.
Ultrasonic frequency is available for 25/45 kHz, 28/68 kHz, 40/80 kHz, 40/130 kHz and 80/130 kHz. The default frequency is 28 kHz and 68 kHz. If other frequency needed, please contact us.
Standard power supply for RM520 is 380V/50Hz, 3 Phase. Other power supply, please contact us.
|Name||Dual-Frequency Ultrasonic Cleaner|
|Ultrasonic Frequency||25/45kHz, 28/68kHz, 40/80kHz, 40/130kHz, 80/130kHz|
|Timing||0-60min. or ∞|
|Inner Tank Size||600x400x350mm||650x450x400mm||700x500x450mm||680x620x500mm||2100x450x530mm|
|Tank Material||SUS304 or SUS316L|
|Power Supply||220V/50Hz, 1 Phase||380V/50Hz, 3 Phase|
|Power Cable Length||3m|
2 frequencies can be switched easily as you need. For different cleaning process, you can choose different frequency, and it is also very suitable for workpiece which needs both coarse and fine cleaning.
2. Automatic Sweep
Sweep function can eliminate the standing waves effectively. That's helpful to improve ultrasonic distribution in the tank and make cleaning more uniformly.
3. 2 Times Peak Power
2 times peak power excitation can act on stubborn stains and semi-aqueous solvents, ultrasonic performance is improved obviously.
4. Linearly Adjustable Power
Ultrasonic power can be adjusted 10-100% linearly, which is more precisely for different cleaning request.
5. Load Self-Adaption
It will adjust itself to fit to different working conditions (liquid temperature, liquid level and with/without workpiece) automatically, and maintain the optimal working frequency and constant power output.
6. High Definition Industrial Level LCD Display
User-friendly LCD display allows user to monitor working status and set parameters.
7. Efficient Cleaning
Adopting peak modulation technology which can breakdown the bubbles more quickly and remove the stubborn stains easily. Under same condition, the breakdown speed of foil is significantly improved.
8. Stable Output
Self-adaption technology can ensure the machine to fit to load changing perfectly, such as different liquid level, liquid temperature changing and workpiece movement. Ultrasonic performance will keep still.
9. High Conversion Efficiency
The conversion efficiency of ultrasonic and electric energy is more than 95%. The energy conversion is more than others at same ultrasonic power output.
10. Extended Function
Circulation system, oil skimmer, bubbling tank, rinsing tank, high pressure spraying tank and drying tank can be extended as your demands.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1. Are you manufacturer or trading company?
We are manufacturer. All the core components (ultrasonic transducer, ultrasonic generator) are home-made by ourselves.
2. Do you accept OEM and ODM?
Yes, we also have profession R&D teams (ultrasonic transducer team, ultrasonic generator team and mechanical design team) to responds your special needs quickly.
3. Delivery time
Standard products can be delivered within 7 working days. Customized machine depend on the design.
We guarantee quality of the products for a period of 1 year. If any quality problem within warranty, we’ll provide free spare parts or repairing service.
5. Do you provide trial cleaning service?
Yes, you're welcome to send the workpieces for trial cleaning. We'll send you video and report about the test. It’s free service.
6. Can you provide ultrasonic transducer or generator if any failure?
Yes, ultrasonic transducer and ultrasonic generator are designed and manufactured by ourselves. We can send the right parts quickly for replacement.
7. Payment Methods?
T/T ,L/C, D/P ,D/A, West Union , Paypal, MoneyGram ,Escrow .
8. Which frequency and power is suitable for our workpiece?
Please contact us and provide details as specific as you can. Information includes: the size, material, weight and dirt of your workpiece and cleaning tank dimension etc.
