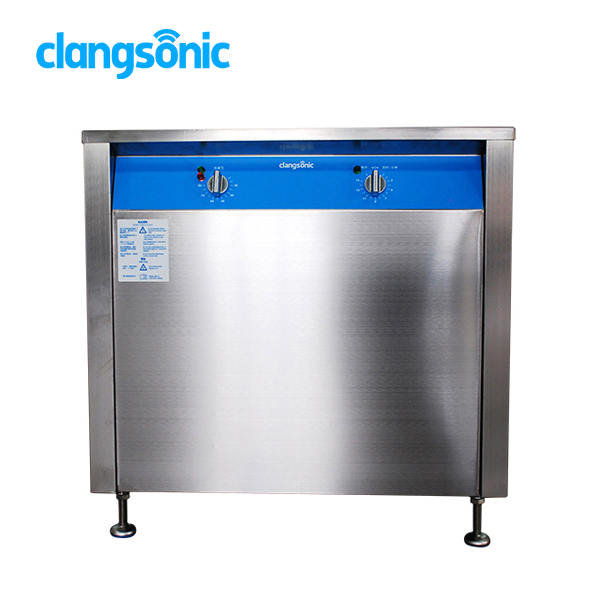

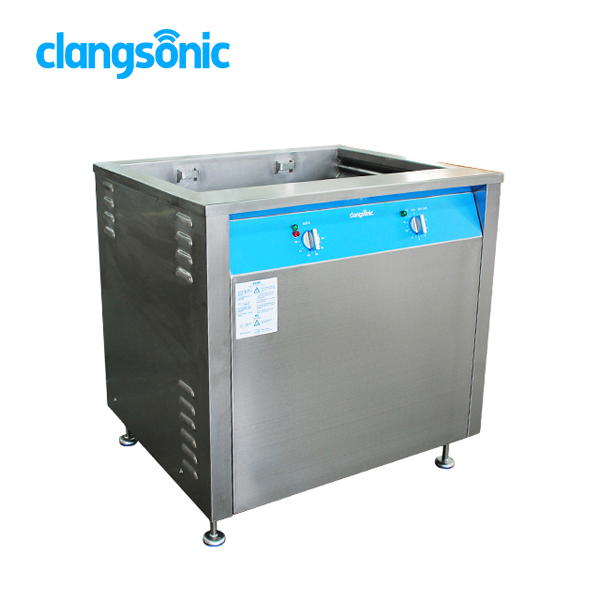

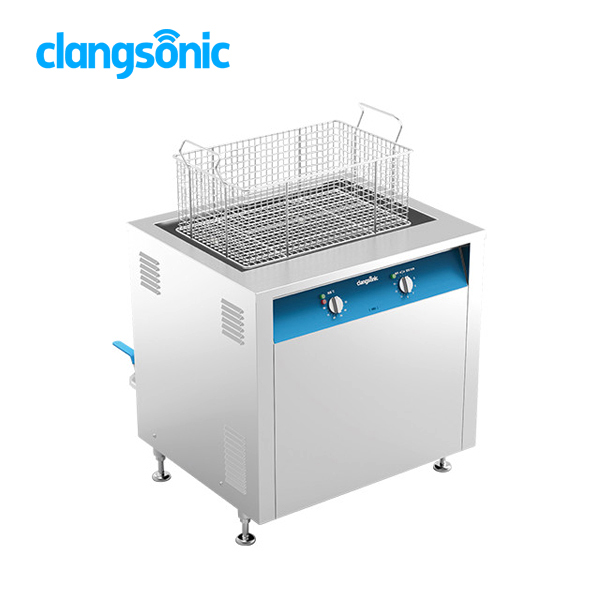

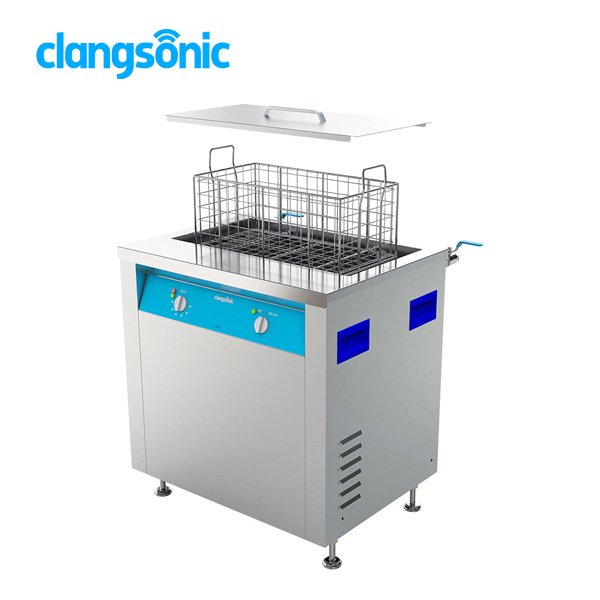

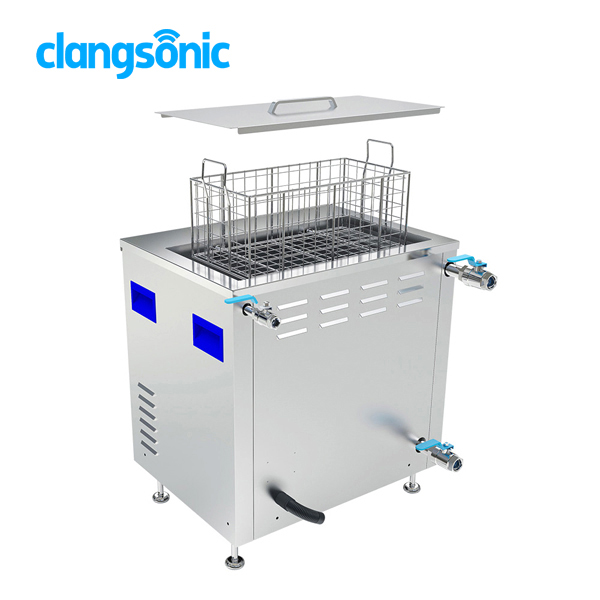

Engine Ultrasonic Cleaner
  • Engine Ultrasonic Cleaner - 0 Engine Ultrasonic Cleaner - 0
  • Engine Ultrasonic Cleaner - 1 Engine Ultrasonic Cleaner - 1
  • Engine Ultrasonic Cleaner - 2 Engine Ultrasonic Cleaner - 2
  • Engine Ultrasonic Cleaner - 3 Engine Ultrasonic Cleaner - 3
  • Engine Ultrasonic Cleaner - 4 Engine Ultrasonic Cleaner - 4

Engine Ultrasonic Cleaner

Engine Ultrasonic Cleaner R Series are integrated ultrasonic cleaning machine suitable for industrial applications. The core component ultrasonic generator adopts advanced T technology platform which has high cleaning efficiency, simple operations and no need of debugging on site. It can be widely used in metal products, auto parts, electronics cleaning etc.

Send Inquiry

PDF DownLoad

Product Description

High Quality Engine Ultrasonic Cleaner From China

1.Engine Ultrasonic Cleaner Introduction

Ultrasonic Cleaner R Series are integrated ultrasonic cleaning machine suitable for industrial applications. The core component ultrasonic generator adopts advanced T technology platform which has high cleaning efficiency, simple operations and no need of debugging on site. It can be widely used in metal products, auto parts, electronics cleaning etc.


Clangsonic ultrasonic cleaner are mainly used in industry. Size and power can be customized by your request.


Engine Ultrasonic Cleaner

Clangsonic provides varies of capacities of ultrasonic cleaner. Please contact us for customized tank size.


2.Engine Ultrasonic Cleaner Parameter(Specification)

Name Industrial Ultrasonic Cleaning Machine
Model R85 R120 R160 R220 R520
Capacity 85L 120L 160L 220L 520L
Ultrasonic Frequency 28kHz or 40kHz
Ultrasonic Power 1500Watts 1800Watts 2400Watts 4000Watts 6000Watts
Heating Power 5KW 8KW 10KW 10KW 16KW
Heating Temperature 0-80°C
Timing 0-15min. or ∞
Inner Tank Size 600x400x350mm 650x450x400mm 700x500x450mm 800x550x500mm 2100x450x530mm
Basket Size 510x330x180mm 560x380x230mm 610x430x280mm 710x470x350mm 2000x350x300mm
Overall Size 700x580x750mm 700x630x750mm 880x690x850mm 900x730x950mm 2260x785x900mm
Power Supply 220V/50Hz, 1 Phase 380V/50Hz, 3 Phase
Power Cable Length 3m
SUS Cover
Rolling Wheel
Circulation System Optional
Oil Skimmer Optional


3. Engine Ultrasonic Cleaner Features and Application

1. Efficient Cleaning
Adopting peak modulation technology which can breakdown the bubbles more quickly and remove the stubborn stains easily. Under same conditions, the breakdown speed of foil is significantly improved.

2. Stable Output
Self-adaption technology can ensure the machine to fit to load changing perfectly, such as different liquid level, liquid temperature changing and workpiece movement. Ultrasonic performance will keep still.

3. High Conversion Efficiency
The conversion efficiency of ultrasonic and electric energy is more than 95%. The energy conservation is more than others at same ultrasonic power output.

4. Simple Operation
Fill in liquid, put into the workpiece and turn on switches. Ultrasonic cleaning can be started in only 3 steps. All the parameters will be matched automatically.
Heating switch temperature is thermostatically controllable (20-80 °C) Timed switch time controllable (0-15min or continuously)
5. Place the bracket
There are metal brackets in the upper and lower slots to facilitate the placement of the basket frame, avoiding direct contact with the bottom shock box and affecting the ultrasonic effect; after cleaning, the basket frame can be placed and drained from the top bracket.

6. Inclined groove bottom
The inclined bottom of the groove is designed to facilitate the discharge of waste liquid and prevent the accumulation of dirt.

7. Protection
Low level protection, Overcurrent protection, Short circuit protection, Over temperature protection.

Engine Ultrasonic Cleaner


4. Engine Ultrasonic Cleaner Details Images

Engine Ultrasonic Cleaner

Engine Ultrasonic Cleaner

Engine Ultrasonic Cleaner

Engine Ultrasonic Cleaner

Optional Circulation System with Oil Skimmer For Heavy Duty and Oily Workpiece Cleaning

Engine Ultrasonic Cleaner

Optional Hot Air Drying Tank


5.Engine Ultrasonic Cleaner Company Qualification

Engine Ultrasonic Cleaner

Engine Ultrasonic Cleaner


6.Engine Ultrasonic Cleaner Deliver, Shipping and Serving

Engine Ultrasonic Cleaner

Engine Ultrasonic Cleaner

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Engine Ultrasonic Cleaner


7. FAQ

1. Are you manufacturer or trading company?
We are manufacturer. All the core components (ultrasonic transducer, ultrasonic generator) are home-made by ourselves.
2. Do you accept OEM and ODM?
Yes, we also have profession R&D teams (ultrasonic transducer team, ultrasonic generator team and mechanical design team) to responds your special needs quickly.
3. Delivery time
Standard products can be delivered within 7 working days. Customized machine depend on the design.
4. Warranty
We guarantee quality of the products for a period of 1 year. If any quality problem within warranty, we’ll provide free spare parts or repairing service.
5. Do you provide trial cleaning service?
Yes, you're welcome to send the workpieces for trial cleaning. We'll send you video and report about the test. It’s free service.
6. Can you provide ultrasonic transducer or generator if any failure?
Yes, ultrasonic transducer and ultrasonic generator are designed and manufactured by ourselves. We can send the right parts quickly for replacement.
7. Payment Methods?
T/T ,L/C, D/P ,D/A, West Union , Paypal, MoneyGram ,Escrow .
8. Which frequency and power is suitable for our workpiece?
Please contact us and provide details as specific as you can. Information includes: the size, material, weight and dirt of your workpiece and cleaning tank dimension etc.
