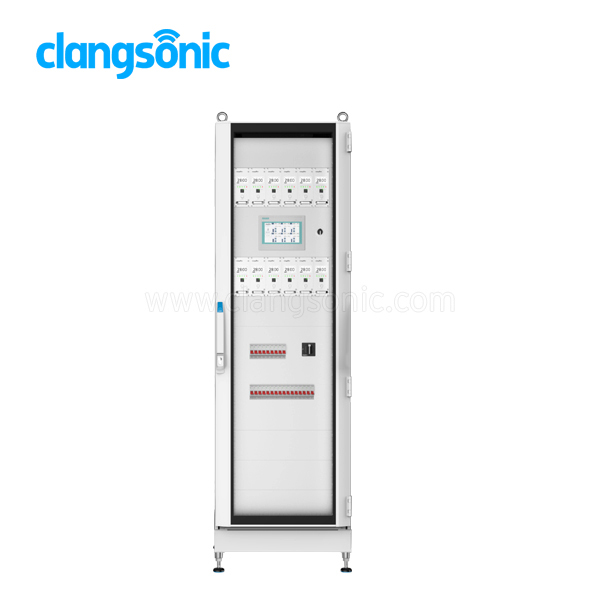

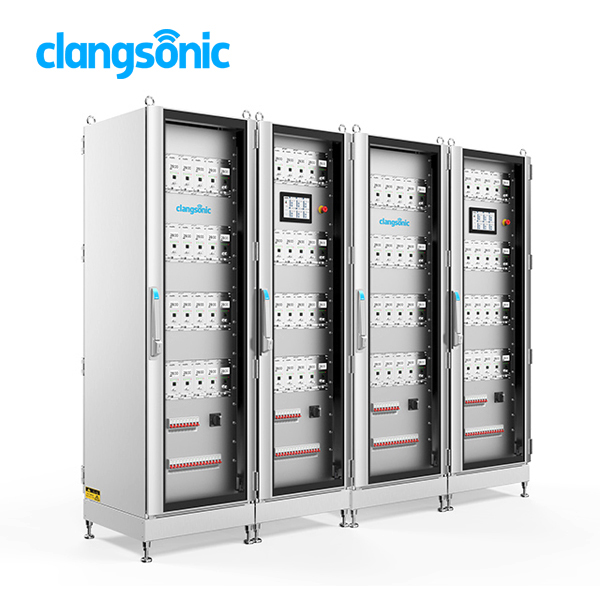

High Power Ultrasonic Generator

This high power ultrasonic generator uses an independent cooling system and integrated wiring scheme, including power supply to ultrasonic generators, ultrasonic HF cable, control system and communication bus to ultrasonic generator etc.Only 1 cabinet can drive the whole high power ultrasonic cleaning tank. Easy to install, operate and maintain. High power ultrasonic generator is very stable.

Send Inquiry

PDF DownLoad

Product Description

1. High Power Ultrasonic Generator Introduction

This high power ultrasonic generator uses an independent cooling system and integrated wiring scheme, including power supply to ultrasonic generators, ultrasonic HF cable, control system and communication bus to ultrasonic generator etc.
Only 1 cabinet can drive the whole high power ultrasonic cleaning tank. Easy to install, operate and maintain. High power ultrasonic generator is very stable.
More importantly, high power ultrasonic generator avoids the problems caused by generator placement, wiring and heat dissipation in the conventional solution. This high power ultrasonic generator is developed with the new technology and with full-bridge phase shift, constant power output, automatic frequency chasing and automatic impedance change. It can further improve the adaptability of the generator for different working conditions stability.


2.High Power Ultrasonic Generator Parameter(Specification)

Ultrasonic driver ideal for ultrasonic application
1-24 movement ultrasonic cabinet generator, according to your applicable situation to plan a reasonable plan. Please specify the transducer model, transducer quantity, transducer capacitance and working votage when placing order.
If you are interested in further details and applicability of the generator, please contact us at clangsonic.com


3. High Power Ultrasonic Generator Features and Application

1. Industrial level LCD display supporting parameters setting and status monitoring.
2. Remote control, connectable to PLC and good HMI man-machine Interaction Interface
3. High-frequency connector or CE connector (US , EU or standard type)
4. Full automatic frequency control, self-adaptive wideband sweep and load adaptive

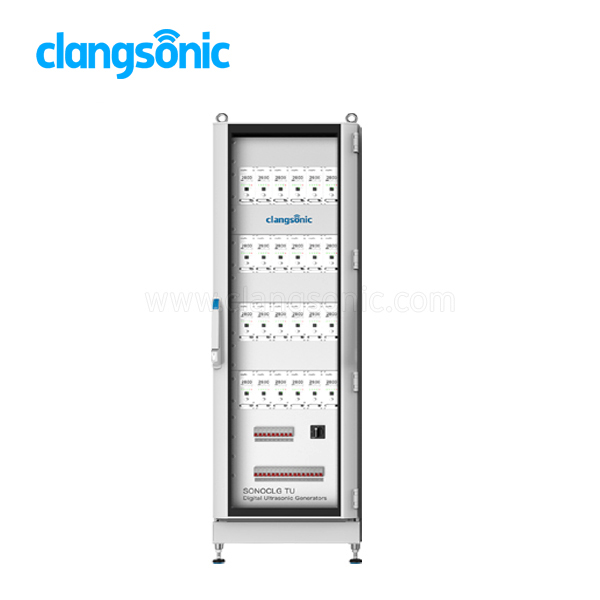

5. 19 inch network standard cabinet which can include 24pcs PCB module at most
6. Times peak power technology which has better cleaning effect to stubborn stains.

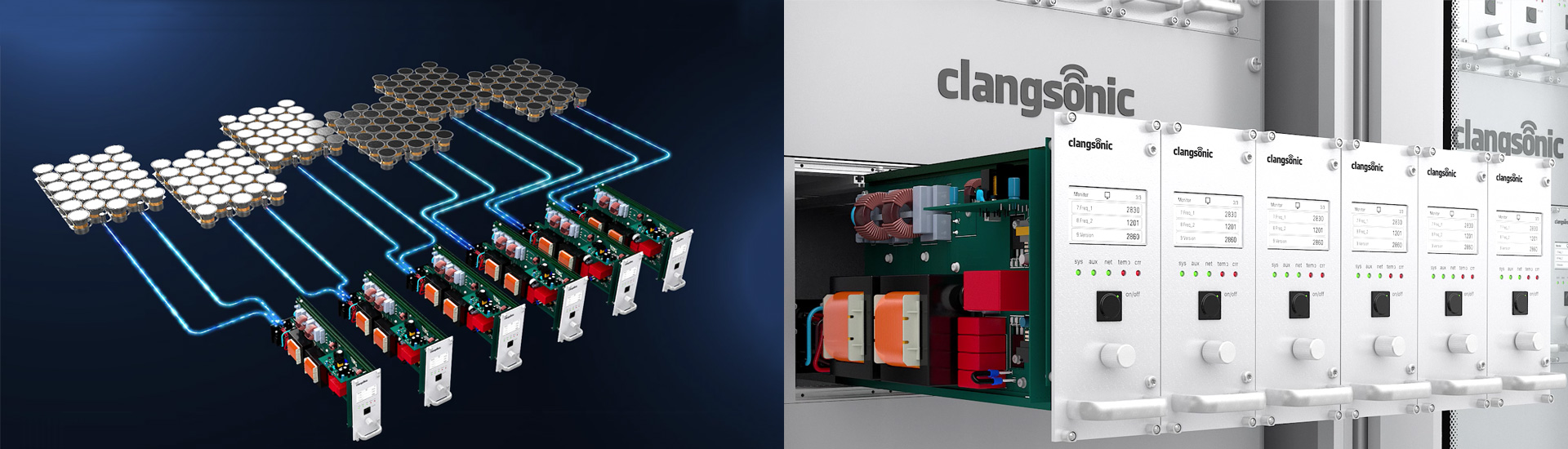

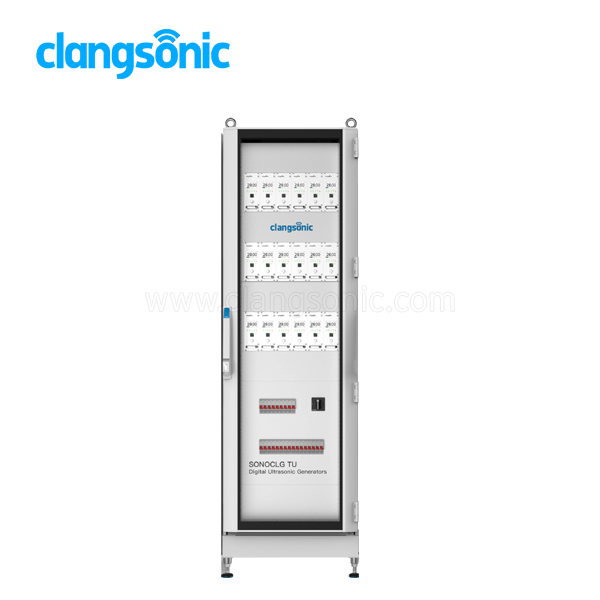

7. Independent module slot design, plug and play

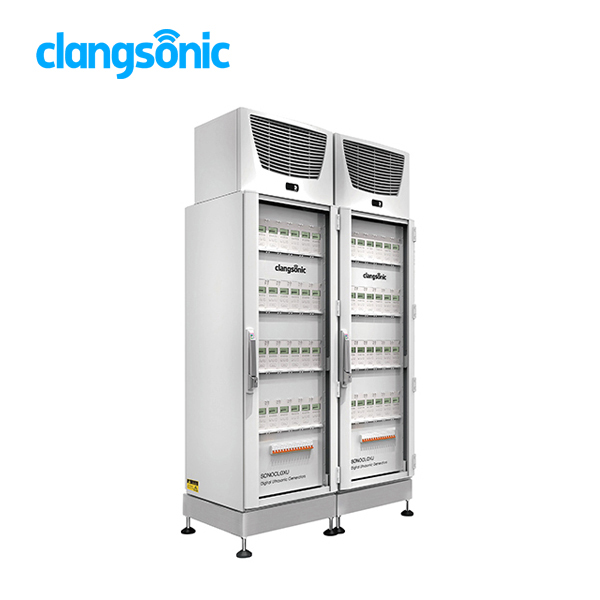

8. Well heat dissipation design to effectively ensure cooling of generator modules and cabinet, internal protection for over current, over voltage and short circuit.
9. Ultrasonic power adjustable and ultrasonic frequency, working current etc can be readable, integrated easily into existing system
10. Safety protection measurement for each generator module
11. Internal strong and weak electric integrated wiring scheme, convenient for on-site installation
12. Maximum ultrasonic power for single PCB module is 2000W
13. Support RS485 MODBUS RTU communication, helping build industrials 4.0
14. 150 ° C standard for inductive transformers and vacuum impregnation is adopted for wire package
15. The circuit board is made of four layers of 2OZ copper and 40A design standard for power part
16. Capacitor adopts WIMA, TDK brand, 50A Infineon power tube
17. IGBT full bridge phase shift technology, support dual frequency output.
18. Frequency sweep function which can effectively eliminate stand wave and improve ultrasonic performance.
19. Support TU/TD PCB Installation, automatic frequency-tracking and constant power output


4. Details Images

temp: temperature alarm indicator light
err: generator error indicator light
on/off: ultrasonic working indicator

Back Panel
Load connector: Connect to ultrasonic transducer
Power supply connector: Connect to main supply
DB15 interface: Connect to control signal wire

Power Supply Control Panel
3 Phase 5 Wire Star Connection is recommended. The phase lines and neutral line needs copper wire with diameter no less than 16mm². Power supply inlet port is reserved on the back panel of cabinet, please connect the relevant wires to the port.
If there is control switch connected to power supply, please use 100A/3P miniature circuit breaker or molded case circuit breaker.

Cabinet Front Panel
This HMI is installed in the middle of the front of this device, powered by 24VDC.
The communication port is connected to 24pcs TU PCB via RS485. The status and parameters can be monitored


5. Company Qualification


6. Deliver, Shipping and Serving

Export carton & wooden box & waterproof bag and other required package for Clangsonic ultrasonic generator


7. FAQ

(1) Delivery time
Standard products can be delivered within 7 working days. Customized products depend on the design, customized products are based on the order quantity.
(2) Payment method
1. T/T
2. L/C
3. D/P
4. D/A
5. West Union
6. Paypal
7. MoneyGram
8. Escrow
(3) Warranty
100% brand new when leaving the factory. The seller guarantee quality of the products (excluding wearing parts) for a period of 2years from the date of trial run finish under our technician's guidance. If any quality problem within warranty, we’ll provide free spare parts or repairing service.
Clangsonic provides 18 months warranty from the date of factory under normal use. The manufacturer shall not be responsible for any direct or indirect loss, compensation and repair due to improper use, installation, misuse or abnormal temperature, dust and corrosive atmosphere etc.
Below are not covered by Warranty:
1. Cavitation erosion on ultrasonic tank or surface of submersible transducer, which is a normal phenomenon during ultrasonic cleaning
2. Damage caused by abuse, improper installation, alternation, overload or neglect of precautions during the warranty, the device will be repaired or replaced by professional. Clangsonic reserves all the right.
(4) Our Services
Multiple single frequency and multiple frequency ultrasonic generator are available the model can be used for reference, and the ultrasonic transducer with different power and frequency can be customized according to your specific use or size.
OEM, ODM and Customization
(5) Do you accept customization?
Yes, we have professional R&D teams to respond your special requirements quickly.
(6) Can we tune the generator by ourselves?
We will tune the generator to the optimum resonant status before factory. It's forbidden for user to modify the parameters without Clangsonic's authorization. Unauthorized modifications may damage the devices or result in un-tuning between ultrasonic generator and ultrasonic transducer. And these are also not covered by warranty. Any question please contact us.
