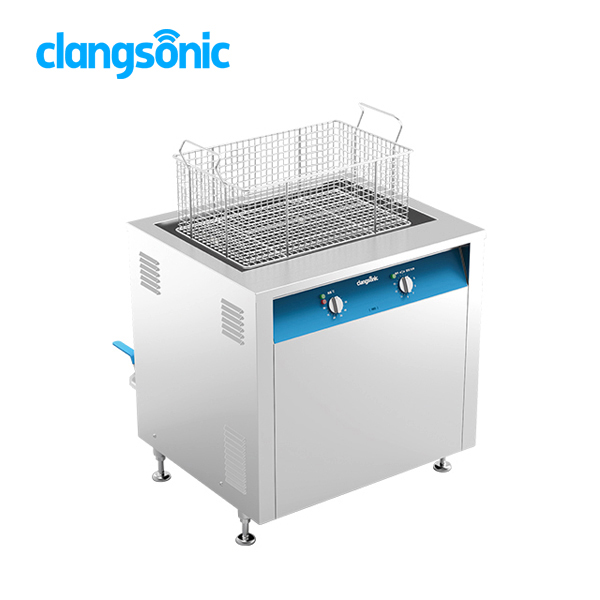

Ultrasonic filter cleaning machine R Series are integrated ultrasonic cleaning machine suitable for industrial applications. The core component ultrasonic generator adopts advanced T technology platform which has high cleaning efficiency, simple operations and no need of debugging on site. Ultrasonic filter cleaning machine can be widely used in metal products, auto parts, electronics cleaning etc.
Clangsonic ultrasonic filter cleaning machine are mainly used in industry. Size and power can be customized by your request.
Clangsonic provides varies of capacities of ultrasonic filter cleaning machine. Please contact us for customized tank size.
|Name||Industrial Ultrasonic Cleaning Machine|
|Ultrasonic Frequency||28kHz or 40kHz|
|Timing||0-15min. or ∞|
|Inner Tank Size||600x400x350mm||650x450x400mm||700x500x450mm||800x550x500mm||2100x450x530mm|
|Power Supply||220V/50Hz, 1 Phase||380V/50Hz, 3 Phase|
|Power Cable Length||3m|
1. Efficient Cleaning
Adopting peak modulation technology which can breakdown the bubbles more quickly and remove the stubborn stains easily. Under same conditions, the breakdown speed of foil is significantly improved.
2. Stable Output
Self-adaption technology can ensure the machine to fit to load changing perfectly, such as different liquid level, liquid temperature changing and workpiece movement. Ultrasonic performance will keep still.
3. High Conversion Efficiency
The conversion efficiency of ultrasonic and electric energy is more than 95%. The energy conservation is more than others at same ultrasonic power output.
4. Simple Operation
Fill in liquid, put into the workpiece and turn on switches. Ultrasonic cleaning can be started in only 3 steps. All the parameters will be matched automatically.
Heating switch temperature is thermostatically controllable (20-80 °C)
Timed switch time controllable (0-15min or continuously)
5. Place the bracket
There are metal brackets in the upper and lower slots to facilitate the placement of the basket frame, avoiding direct contact with the bottom shock box and affecting the ultrasonic effect; after cleaning, the basket frame can be placed and drained from the top bracket.
6. Inclined groove bottom
The inclined bottom of the groove is designed to facilitate the discharge of waste liquid and prevent the accumulation of dirt.
Low level protection, Overcurrent protection, Short circuit protection, over temperature protection.

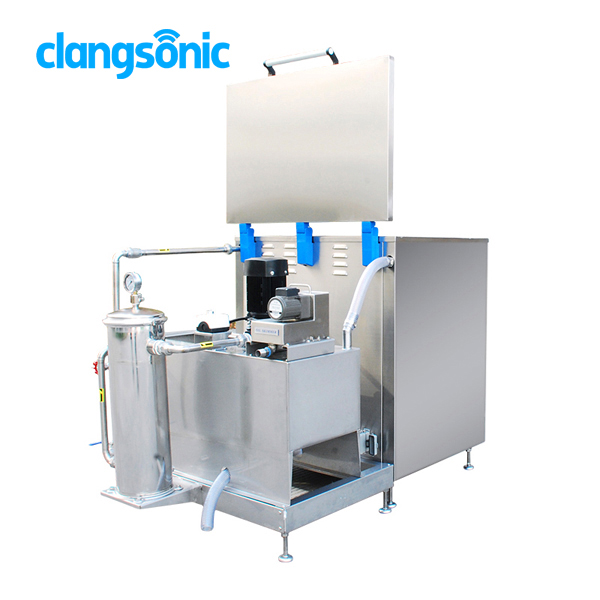

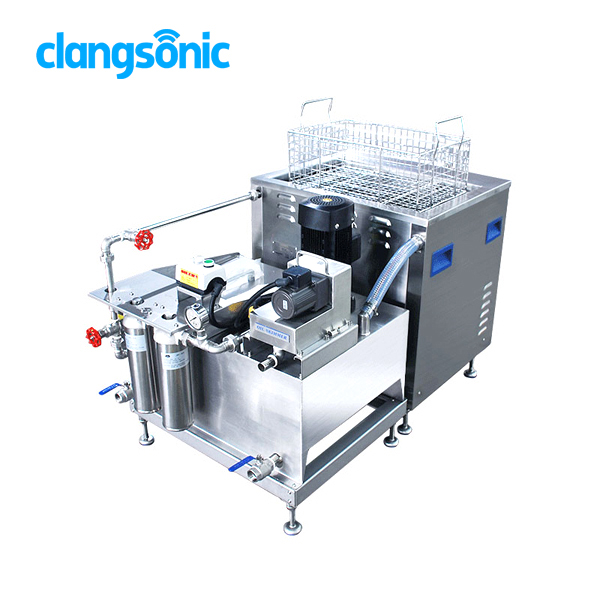

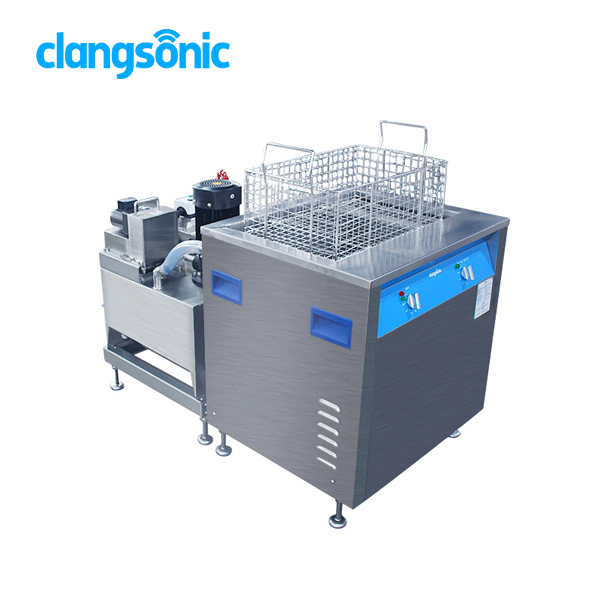

Optional Circulation System with Oil Skimmer For Heavy Duty and Oily Workpiece Cleaning
Optional Hot Air Drying Tank
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1. Are you manufacturer or trading company?
We are manufacturer. All the core components (ultrasonic transducer, ultrasonic generator) are home-made by ourselves.
2. Do you accept OEM and ODM?
Yes, we also have profession R&D teams (ultrasonic transducer team, ultrasonic generator team and mechanical design team) to responds your special needs quickly.
3. Delivery time
Standard products can be delivered within 7 working days. Customized machine depend on the design.
We guarantee quality of the products for a period of 1 year. If any quality problem within warranty, we’ll provide free spare parts or repairing service.
5. Do you provide trial cleaning service?
Yes, you're welcome to send the workpieces for trial cleaning. We'll send you video and report about the test. It’s free service.
6. Can you provide ultrasonic transducer or generator if any failure?
Yes, ultrasonic transducer and ultrasonic generator are designed and manufactured by ourselves. We can send the right parts quickly for replacement.
7. Payment Methods?
T/T ,L/C, D/P ,D/A, West Union , Paypal, MoneyGram ,Escrow .
8. Which frequency and power is suitable for our workpiece?
Please contact us and provide details as specific as you can. Information includes: the size, material, weight and dirt of your workpiece and cleaning tank dimension etc.
