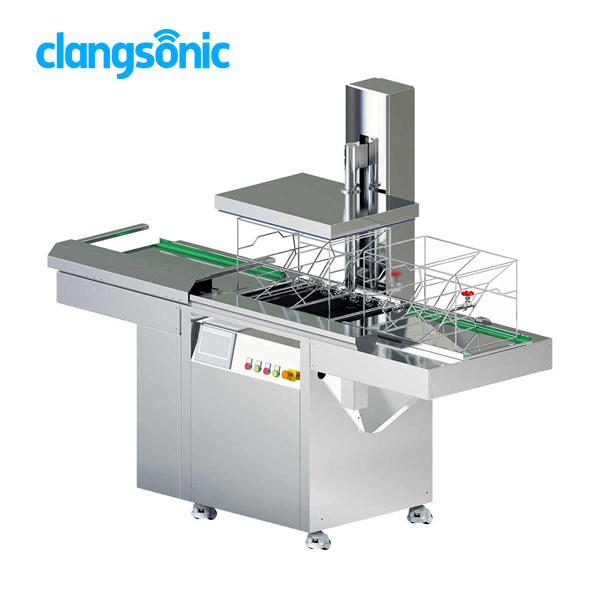

This M-120 ultrasonic cleaning device is an automatic equipment, specially used for cleaning industry. It includes 1 ultrasonic cleaning tank with Siemens HMI to achieve user-friendly interface for parameters settings, Loading/Unloading Platform and oscillation system. It is developed based on the advanced Full Bridge Phase Shift technology and equipped with LCD display, timer, heater and so on, easy to operate and no need to debug. It is widely used in metal parts, auto parts, electronics and medical industries etc.
Clangsonic ultrasonic cleaner are mainly used in industry. Size and power can be customized by your request.
Clangsonic provides varies of capacities of ultrasonic cleaner. Please contact us for customized tank size.
|Name||Automatic Ultrasonic Cleaner|
|Ultrasonic Frequency||28/68kHz, 40/80kHz, 40/130kHz, 80/130kHz|
|Ultrasonic Power Adjustable||Ultrasonic Power Adjustable|
|Timing||0-60min. or Normally Open|
|Inner Tank Size||650x465x487mm|
|Power Supply||380V/50Hz, 3 Phase 5 Wire|
|Power Supply Cable Length||3m|
1. Automatic cleaning and loading/unloading
2. Siemens centralized control system, easy to operate and use flexibly
3. Adopting Siemens, Schneider and other famous brands for electrical components in master control system
4. Ultrasonic tank with TU ultrasonic generator for cleaning more thoroughly
5. Working time, heating temperature and power level etc on each tank can be set by user
6. Material SUS304 imported from South Korea POSCO
The packing is adopting exportable wooden box or pallet, wrapped with moisture-proof material which can protect the machine from dust and moisture during sea shipment.
1. Are you manufacturer or trading company?
We are manufacturer. All the core components (ultrasonic transducer, ultrasonic generator) are home-made by ourselves.
2. Do you accept OEM and ODM?
Yes, we also have profession R&D teams (ultrasonic transducer team, ultrasonic generator team and mechanical design team) to responds your special needs quickly.
3. Delivery time
Standard products can be delivered within 7 working days. Customized machine depend on the design.
We guarantee quality of the products for a period of 1 year. If any quality problem within warranty, we’ll provide free spare parts or repairing service.
5. Do you provide trial cleaning service?
Yes, you're welcome to send the workpieces for trial cleaning. We'll send you video and report about the test. It’s free service.
6. Can you provide ultrasonic transducer or generator if any failure?
Yes, ultrasonic transducer and ultrasonic generator are designed and manufactured by ourselves. We can send the right parts quickly for replacement.
7. Payment Methods?
T/T ,L/C, D/P ,D/A, West Union , Paypal, MoneyGram ,Escrow .
8. Which frequency and power is suitable for our workpiece?
Please contact us and provide details as specific as you can. Information includes: the size, material, weight and dirt of your workpiece and cleaning tank dimension etc.
