Industrial Ultrasonic Cleaning Machine

RA series is dual-frequency industrial ultrasonic cleaning machine suitable for industrial applications. The core component ultrasonic generator adopts the most advanced T technology platform which has high cleaning efficiency, simple operations and no need of debugging on site.

Send Inquiry

PDF DownLoad

Product Description

Industrial Ultrasonic Cleaning Machine can be Customized From China

1.Industrial Ultrasonic Cleaning Machine Introduction

RA series is dual-frequency industrial ultrasonic cleaning machine suitable for industrial applications. The core component ultrasonic generator adopts the most advanced T technology platform which has high cleaning efficiency, simple operations and no need of debugging on site. Industrial ultrasonic cleaning machine can be widely used in metal products, auto parts, electronics cleaning, medical instruments, optical glass cleaning etc.

Industrial Ultrasonic Cleaning Machine

Clangsonic ultrasonic cleaner are mainly used in industry. Size and power can be customized by your request.

Industrial Ultrasonic Cleaning Machine

Clangsonic provides varies of capacities of industrial ultrasonic cleaning machine. Please contact us for customized tank size.


2.Industrial Ultrasonic Cleaning Machine Parameter(Specification)

Name Industrial Ultrasonic Cleaning Machine
Model RA220
Capacity 220L
Ultrasonic Frequency 25/45kHz, 28/68kHz, 40/80kHz, 40/130kHz, 80/130kHz
Ultrasonic Power 3600Watts
Heating Power 12KW
Heating Temperature 30-80°C
Timing 0-60min. or Normally Open
Inner Tank Size 800x600x450mm
Basket Size 700x450x300mm
Overall Size 920x1000x1650mm
Power Supply 380V/50Hz, 3 Phase 5 Wire
Power Cable Length 3m
SUS Cover Optional
Circulation System Optional
Oil Skimmer Optional


3. Industrial Ultrasonic Cleaning Machine Features and Application

1. One Button Start
Press “Start” button to complete the functions of basket lift in, basket oscillation, ultrasonic cleaning and basket lift out etc.

2. Oscillation System
The basket with workpiece will be moved up and down automatically during cleaning, that will avoid dirt accumulating on surface or holes of workpiece and improve cleanliness.

3. Dual-Frequency
2 frequencies can be switched easily as you need. For different cleaning process, you can choose different frequency, and it is also very suitable for workpiece which needs both coarse and fine cleaning.

4. Automatic Sweep
Sweep function can eliminate the standing waves effectively. That’s helpful to improve ultrasonic distribution in the tank and make cleaning more uniformly.

5. 2 Times Peak Power
2 times peak power excitation can act on stubborn stains and semi-aqueous solvents, ultrasonic performance is improved obviously.

6. Linearly Adjustable Power
Ultrasonic power can be adjusted 10-100% linearly, which is more precisely for different cleaning requests.

7. Load Self-Adaption
It will adjust itself to fit to different working conditions (Liquid Temperature, Liquid Level and Workpiece) automatically, and maintain the optimal working frequency and constant power output.

8. High Definition Industrial Level LCD Display
User-friendly LCD display allows user to monitor working status and set parameters.

9. Efficient Cleaning
Adopting peak modulation technology which can breakdown the bubbles more quickly and remove the stubborn stains easily. Under same conditions, the breakdown speed of foil is significantly improved.

10. Stable Output
Self-adaption technology can ensure the machine to fit to load changing perfectly, such as different liquid level, liquid temperature changing and workpiece movement. Ultrasonic performance will keep still.

11. High Conversion Efficiency
The conversion efficiency of ultrasonic and electric energy is more than 90%. The energy conservation is more than others at same ultrasonic power output.

12. Extended Function
Circulation System, Oil Separator, Bubbling Tank, Rinsing

Industrial Ultrasonic Cleaning Machine


4. Details Images

Industrial Ultrasonic Cleaning Machine

Industrial Ultrasonic Cleaning Machine

Industrial Ultrasonic Cleaning Machine

Industrial Ultrasonic Cleaning Machine

Industrial Ultrasonic Cleaning Machine

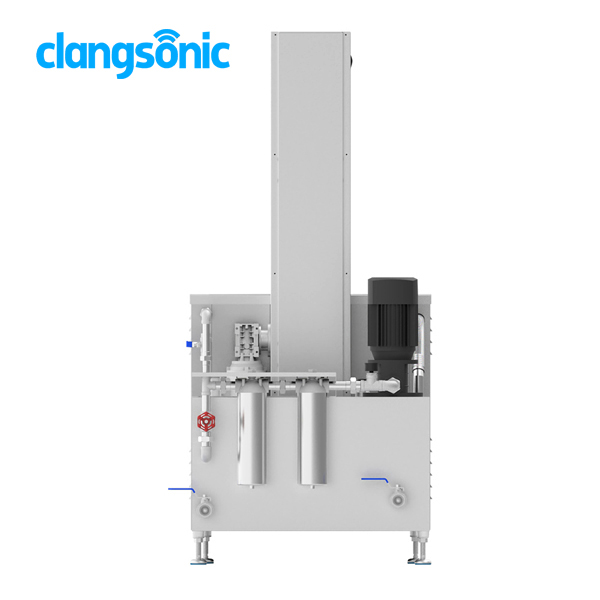

Optional Circulation System With Oil Skimmer

Industrial Ultrasonic Cleaning Machine

Equipped With Circulation System And Oil Skimmer


5. Company Qualification

Industrial Ultrasonic Cleaning Machine

Industrial Ultrasonic Cleaning Machine


6. Deliver, Shipping and Serving

Industrial Ultrasonic Cleaning Machine

Industrial Ultrasonic Cleaning Machine

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Industrial Ultrasonic Cleaning Machine


7. FAQ

1. Are you manufacturer or trading company?
We are manufacturer. All the core components (ultrasonic transducer, ultrasonic generator) are home-made by ourselves.
2. Do you accept OEM and ODM?
Yes, we also have profession R&D teams (ultrasonic transducer team, ultrasonic generator team and mechanical design team) to responds your special needs quickly.
3. Delivery time
Standard products can be delivered within 7 working days. Customized machine depend on the design.
4. Warranty
We guarantee quality of the products for a period of 1 year. If any quality problem within warranty, we’ll provide free spare parts or repairing service.
5. Do you provide trial cleaning service?
Yes, you're welcome to send the workpieces for trial cleaning. We'll send you video and report about the test. It’s free service.
6. Can you provide ultrasonic transducer or generator if any failure?
Yes, ultrasonic transducer and ultrasonic generator are designed and manufactured by ourselves. We can send the right parts quickly for replacement.
7. Payment Methods?
T/T ,L/C, D/P ,D/A, West Union , Paypal, MoneyGram ,Escrow .
8. Which frequency and power is suitable for our workpiece?
Please contact us and provide details as specific as you can. Information includes: the size, material, weight and dirt of your workpiece and cleaning tank dimension etc.
